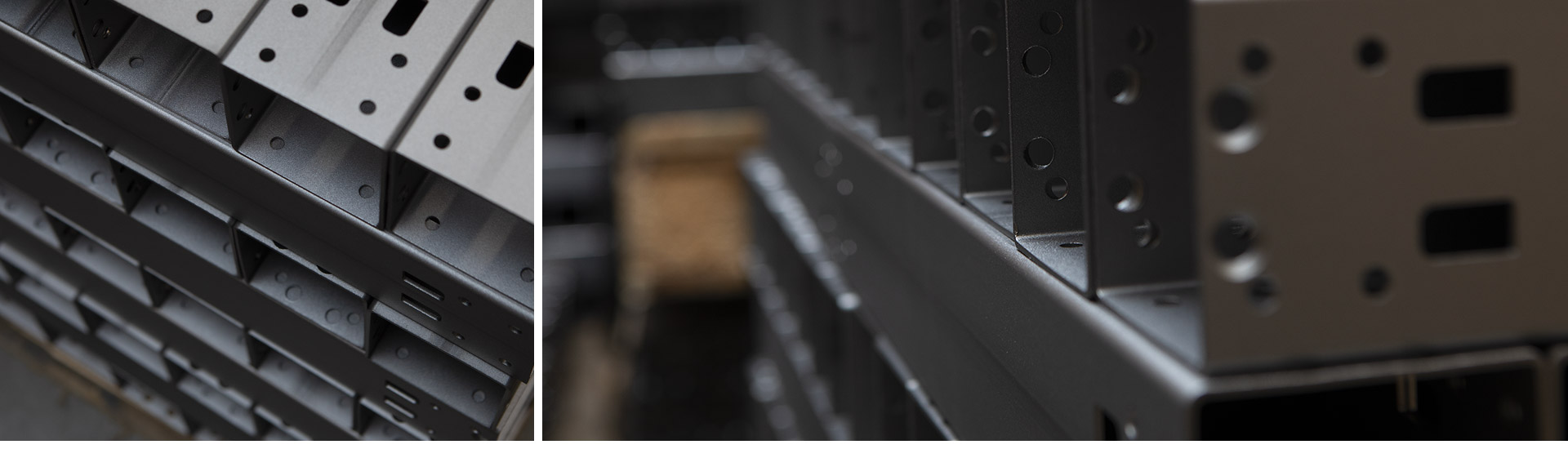

CNC laser cutting of hollow profiles

Profiles

  • circular – D min. 12 mm / max. 120 mm
  • square – side min. 12 mm / max. 100 mm
  • rectangular and flat oval profiles – for circles of ø 140 mm, min. side length 10 mm, max. side length 120 mm and max. difference in the side lengths of 100 mm

Cutting performance

  • structural steel – t max. 5 mm
  • stainless steel – t max. 3 mm
